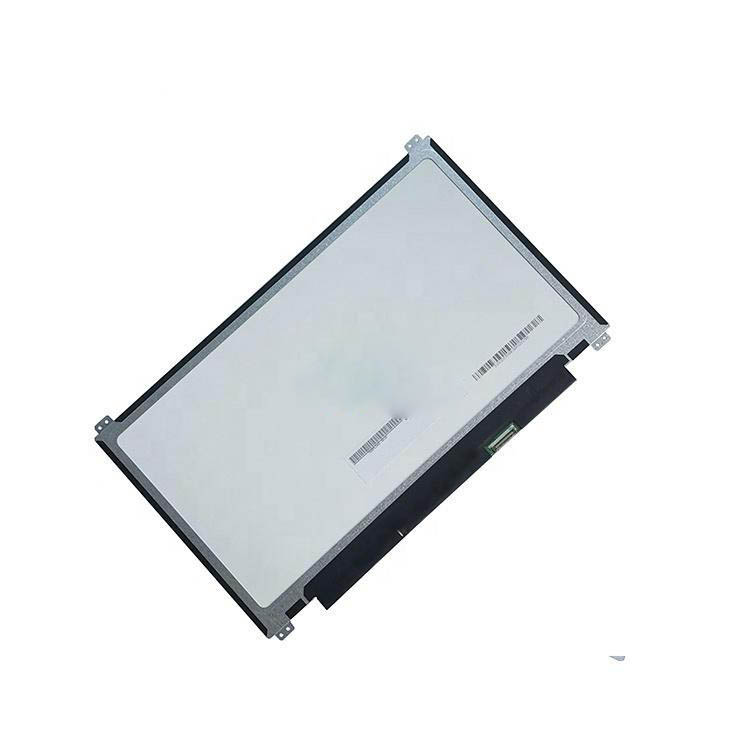

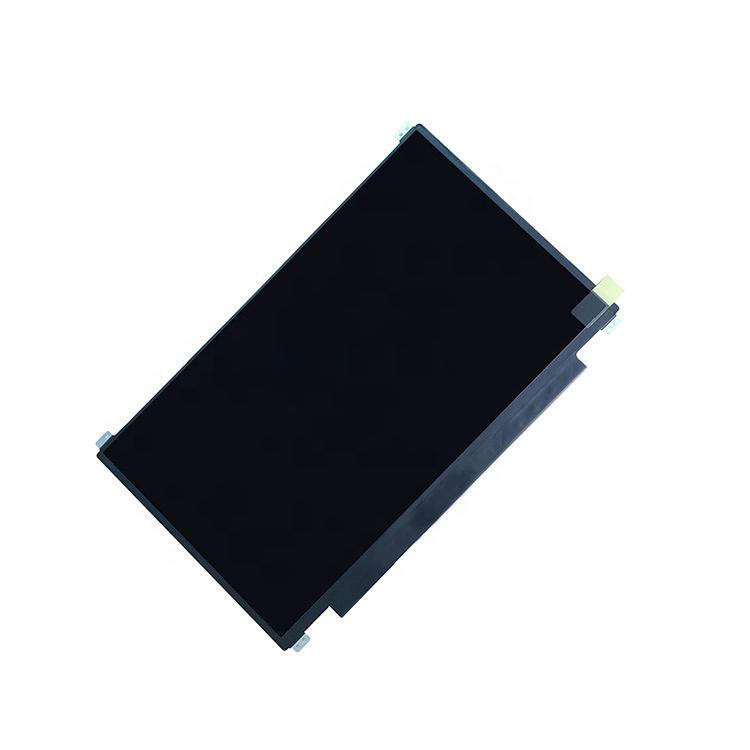

G133ZAN01.0 4K EDP屏 高清

Items

Unit

Specifications

Screen Diagonal

[mm]

336.804

Active Area

[mm]

293.76 (H) x 165.24(V)

Pixels H x V

3840 x 3 (RGB) x 2160

Pixel Pitch

[mm]

0.0765 x 0.0765

Pixel Format

R.G.B. Vertical Stripe

Display Mode

Normally Black

White Luminance (ILED=24mA)

(Note: ILED is LED current)

[cd/m2]

450 typ. (5 points average)

Luminance Uniformity

1.25 max. (5 points)

Contrast Ratio

1200 typ

Response Time

[ms]

30 typ / 35max

Nominal Input Voltage VDD

[Volt]

+3.3 typ

Power Consumption

[Watt]

TBD (Include Logic and BLU)

Weight

[Grams]

190 max

Physical Size

[mm]

Min.

Typ.

Max.

Length

298.66

298.96

299.26

Width

185.92

186.42

186.92

Thickness

--

--

2.2

Electrical Interface

4Lane eDP 1.4a

Glass Thickness

[mm]

0.2

Surface Treatment

Glare, Hardness 1H, Reflection 5%
